Elevator Rope Tension Meter Steel Wire Rope Adjustment Tester 5000N

The elevator rope tension meter is mainly applied to the tension test of the elevator traction wire rope. In the process of elevator installation, acceptance, and annual inspection, through the tested adjustment of each traction wire rope tension, make its tension as consistent as possible so as to extend the service life of the traction sheave and make the elevator wire rope run more smoothly. This tension meter can also be applied to bridge slings, pole tower wiring, overhead wires, index wire rope, and other tests involving the tension of steel ropes. Technical parameters: Type: DGZ-5000 Load:5000N Rope No:1 Diameter:φ 11 mm Rope No:2 Diameter:φ 13 mm Rope No:3 Diameter:φ 16 mm Resolution:1N Accuracy: less than ±5% Repeatability: less than ±1% Measuring Range:10% to 90% Loading method: Manual Power:7.2V Nickel metal hydride rechargeable battery pack Size:418*128*40 mm N.W. :1.7Kg

• Portable: the instrument adopts a high-strength aluminum alloy structure, lightweight, has a small volume and is easy to carry. When measuring the rope tension, one person can complete all the operations.
• The instrument has stable performance and high measurement accuracy; when the measured rope specification is consistent with the rope number stored in the force meter, the measurement accuracy can reach 5% within the quantifiable range.
• Lightweight, simple structure, easy operation, suitable for any occasion. The instrument is built-in 3 kinds of preset specification ropes; when measuring, you only need to choose the corresponding rope number.
• The digital display shows the force value, and the instrument adopts LCD to display the measured force value, which is more convenient to read. Three kinds of units switch: the device can switch N, Kg, and Lb, three kinds of force value units.

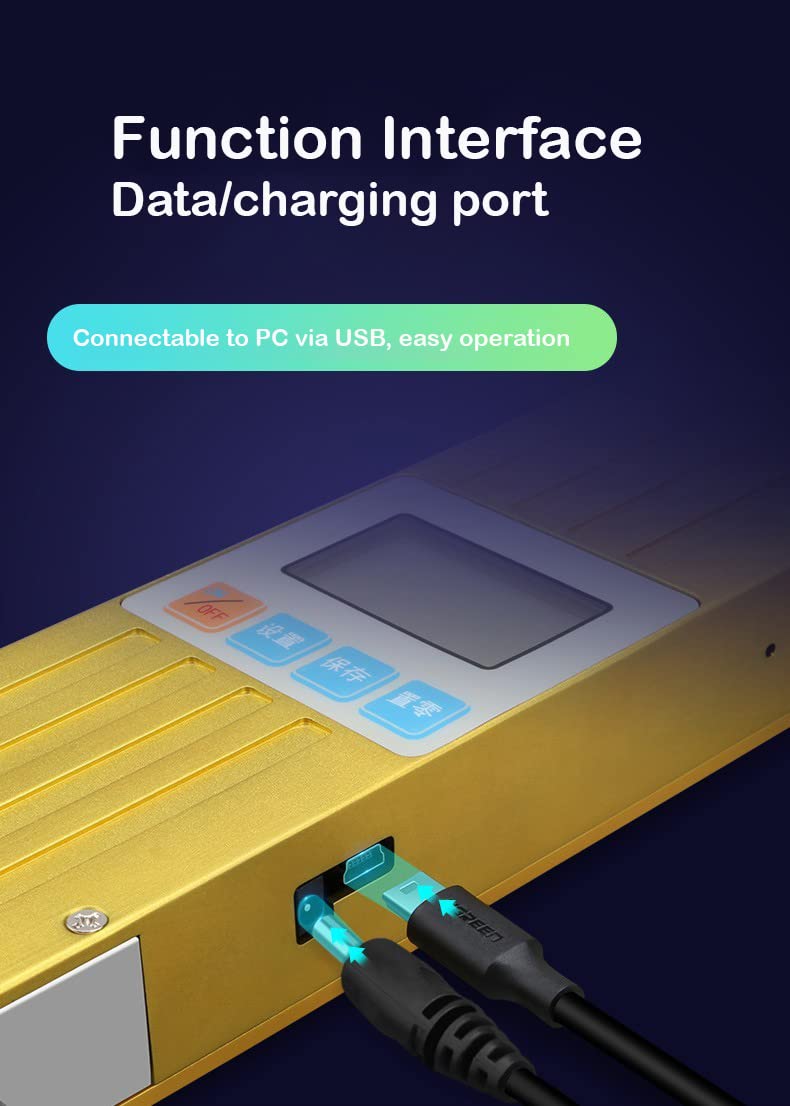

• The instrument can save 383 sets of measurement data, and the saved data can be exported through the computer. Note to users: The supporting software for the data interface is in Chinese, not in English or Japanese, and the actual users of this function rarely use it.
